• 堅固耐用的結構: IP42防塵防水和耐1.2米落摔
• 卓越的電池壽命: 2200mAh電池，可連續使用12個小時
• 出色的掃描性能:可掃描高密度、大資料量和變形的條碼，支援直接掃描螢幕條碼
• 採用最新的藍牙5.0技術: 傳輸距離可達50公尺

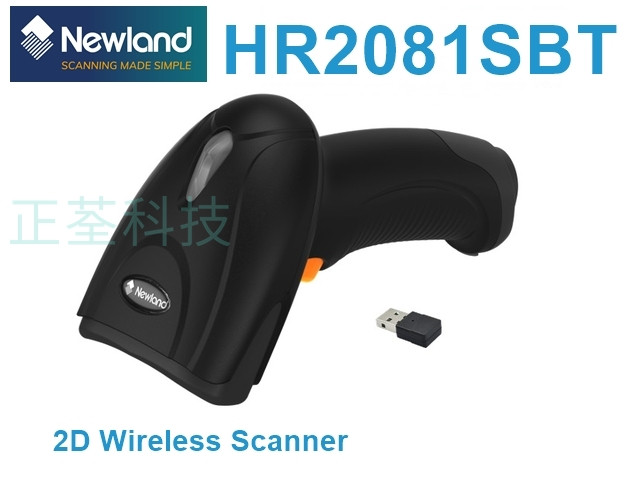

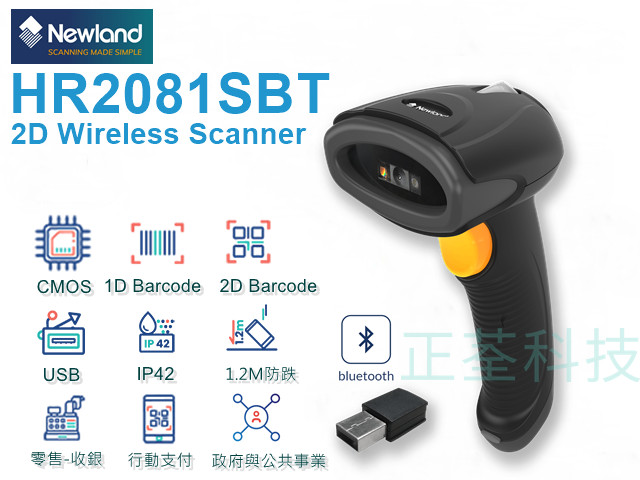

Newland HR2081SBT 是Newland新推出的一維/二維無線條碼掃描器。
產品特色:
• 堅固耐用的結構:
HR2081SBT採用IP42密封和防墜落（1.2米）的外殼，內外防護兼具。
• 卓越的電池壽命:
搭載2200mAh電池，可連續舒適使用12個小時。提供的USB線可直接替掃描器充電。
• 出色的掃描性能:
配備性能優秀的處理器（CPU），這款無線手持掃描器能輕鬆捕捉高密度、大資料量和變形的條碼，無論條碼是印刷在紙上還是顯示在屏幕上。
• 可靠的無線傳輸:
採用最新的藍牙5.0技術，HR2081SBT能夠維持可靠的無線連接以傳輸數據。傳輸距離可達50公尺。
|
規格 |
|||
|
Performance |
Image Sensor |
|
640×480 CMOS |
|
Illumination |
|
White LED |
|
|
Symbologies |
2D |
PDF417, Micro PDF 417, QR Code, Data Matrix, Micro QR Code Aztec, Data Matrix |
|
|
1D |
Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS) |
||
|
OCR |
Passport OCR |
||
|
Resolution |
|
>=3mil |
|
|
Typical Depth of Field |
EAN-13 |
50mm-260mm (13mil) |
|
|
QR Code |
30mm-170mm (15mil) |
||
|
Code 39 |
50mm-115mm (5mil) |
||
|
PDF 417 |
50mm-120mm (6.67mil) |
||
|
Data Matrix |
35mm-125mm (10mil) |
||
|
Scan Angle |
Pitch |
±60° |
|
|
Roll |
360° |
||
|
Skew |
±60° |
||
|
Min. Symbol Contrast |
|
'0.2 |
|
|
Field of View |
|
Horizontal 45°, Vertical 34° |
|
|
Aiming |
|
Red LED (625nm) |
|
|
Wireless |
Communication Modes |
|
Synchronous mode, automatic batch mode and manual batch mode |
|
Radio Technology |
|
Bluetooth 5.0 |
|
|
Communication Distance(direct line of sight in open air) |
With Bluetooth |
50m |
|
|
Battery |
|
2200 mAh lithium-ion battery |
|
|
Expected Charge Time |
|
5.5 hours |
|
|
Expected Battery Life |
|
12 hours of continuous operation (scan once per 6 seconds) |
|
|
Memory Capacity |
|
>=15000 pieces Code 128 (20 byte of each Code 128) |
|
|
Physical |
Dimensions (L×W×H) |
|
145×101×68mm |
|
Weight |
|
167g |
|
|
Charge Voltage |
|
5VDC±5% |
|
|
Interfaces |
|
USB |
|
|
Notification |
|
Beep, LED indicator, vibration |
|
|
Environmental |
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
|
Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) |
|
|
Humidity |
|
5% ~ 95% (non-condensing) |
|
|
ESD |
|
±15 KV (air discharge); ±8 KV (direct discharge) |
|
|
Drop |
|
1.5m |
|
|
Sealing |
|
IP42 |
|
|
Charge Temperature |
|
0°C to 45°C (32°F to 113°F) |
|
|
Certifications |
Certifications |
|
FCC Part15 Class B, CE EMC Class B, RoHS, IEC62471, BIS, BQB |
