• 新一代的CMOS影像感測器
• 支援UDI條碼掃描 (醫療器材單一識別UDI碼)
• 可讀取寬幅一維條碼!
• 可直接掃描手機及電腦螢幕條碼
• 支援USB與RS232介面
• 舒適的人體工學設計與耐用性
• 具備IP42防塵防水防護等級,可承受1.5米摔落
N101手持式UDI二維條碼掃描器提供優異的「開箱即用」體驗,具有卓越的掃描性能和延展的景深,適用於頻繁掃描應用。
舒適、符合人體工學的設計,讓使用者能輕鬆應對長時間掃描的工作。
產品特色:
• 新一代的CMOS影像感測器:
全新的COMS影像感測器,智能輔助瞄準和照明系統,幫助準確掃描。
• 支援UDI條碼掃描(醫療器材單一識別UDI碼):

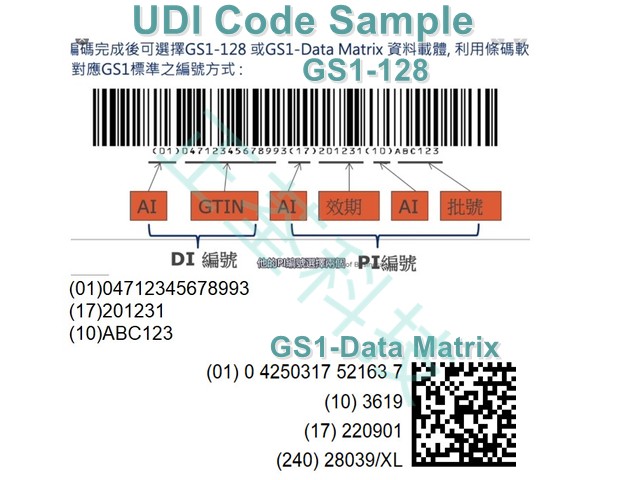

可自動識讀醫療UDI唯一裝置識別碼(包含一維條碼GS1-128GS1 UDI 碼與二維條碼UDI Data Matrix UDI碼), 並將掃描資料內容直接以符合規範的正確格式輸出。
• 可讀取寬幅一維條碼!
N101為市售少數可支援讀取寬幅一維條碼的二維條碼掃描器。一般市售平價款二維掃描器因影像式光學模組限制,無法讀取較寬較長(條碼內容較長)的一維條碼。
• 全方位多種材質條碼掃描能力
N101搭載新一代2D影像解碼技術,輕鬆辨識各種不同表面材料上的條碼,包括各種標籤、紙張材料,可識讀高密度條碼與扭曲的條碼,並具備優異的解碼速度和準確度。
• 可直接讀取手機與電腦螢幕上的條碼
• 支援USB與RS232介面:
只需將傳輸線纜插入主機系統,N101掃描器將自動配置適當的介面,簡化安裝過程。
• 舒適的人體工學設計與耐用性:
人性化的人體工學設計,適合手持掃描,減少長時間掃描時的使用者疲勞。
N101在嚴格的實驗室和實際工作環境中進行測試,確保掃描器的耐用性和堅固性。
按鍵使用壽命可達500萬次。
• 具備IP42防塵防水防護等級,可承受1.5米摔落:
堅固耐用的結構,具有IP42防護等級,能抵抗水和塵埃,能承受1.5米高度的多次混凝土摔落,符合工業標準的耐用性要求。
Scanning Parameter | Image Sensor | CMOS |
Pixel | 640x480 | |
Illumination | Infrared LED | |
Focus | Infrared LED | |
Symbologies | 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. | |
1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand, etc. | ||
Resolution | ≥3mil | |
Typical DOF | 5mil Code39: 20mm–150mm | |
EAN: 30mm–300mm | ||
6.7mil PDF417: 25mm–130mm | ||
10mil DM: 15mm–100mm | ||
20mil QR: 15mm–210mm | ||
Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º | |
FOV | Horizontal: 32 °, Vertical: 25 ° | |
Symbol Contrast | ≥20% | |
Physical Parameter | Dimension(mm) | 83(D)*67(W)*175(H) |
Weight | 128g | |
Scanner Interface | RJ-45 Crystal Head | |
Housing Materials | PC+TPU | |
Notification | Buzzer, LED Indicator | |
Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port | |
Trigger Method | Manual keystroke, | |
induction recognition, | ||
continuous recognition | ||
Electrical Parameter | Operating Voltage | 5VDC±10% |
Operating Current | Standby: 100mA, | |
Working: 230mA | ||
Power | Standby: 0.5W,, | |
Work: 1.15W | ||
Environment Parameter | Operating Temperature | -20 ℃~+50℃ |
Storage Temperature | -40℃~+70℃ | |
Relative Humidity | 5%~95%(No Condensation) | |
ESD | ±15 kV(Air discharge ) | |
±8 kV(Direct discharge) | ||
Environment Luminosity | 0~100, 000LUX | |
Anti-shock Ability | 1.5 m | |
Protection Grade | IP42 | |
Certification | CE FCC RoHS | |
Cable | USB: | |
RS-232: | ||
AC Adapter | 5V, coordinate with RS-232 cable to powerthe scanner | |
Test Condition | Environment temperature: 23ºC | |
Environment illumination: 300LUX filament lamp | ||
DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
