• 先進的解碼技術:
• 節省空間:
• 敏捷的螢幕條碼掃描能力:
• 優越的運動影像捕捉能力:

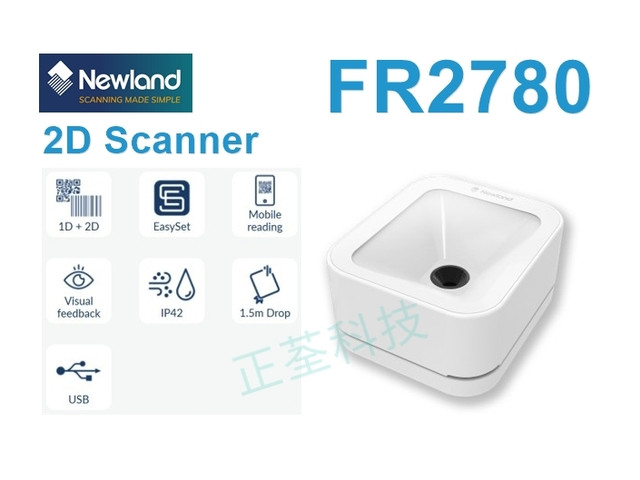

Newland FR2780 是Newland新推出的迷你平台式一維/二維掃描器。
產品特色:
• 先進的解碼技術:
FR2780採用最新一代Newland解碼技術，即使是髒污或皺褶標籤上的條碼，FR2780都能辨識與解碼。
• 節省空間:
極佳的輕量化以及縮小體積的設計，使FR2780 得以非容易佈置於窄小的桌面與貨架上，完全不佔用零售據點結帳櫃台空間。
• 敏捷的螢幕條碼掃描能力:
FR2780針對數位化影像條碼讀取的性能進行了最佳化。
嵌入CPU的設計讓FR2780除了能夠讀取表面覆蓋膠膜的紙質與螢幕上的一維條碼，更能快速解碼讀取承載大量資料的二維條碼。
• 優越的運動影像捕捉能力:
FR2780可以讀取移動速度高達每秒2.7公尺的條碼，寬廣的讀取視角(水平68°，垂直51°)，提升了辨識效率並達成更佳的使用者體驗。
| Performance | Image Sensor | 640 * 480 CMOS |
| Illumination | White LED | |
| Symbologies | 2D: | |
| QR Code, PDF 417, Data Matrix, etc. | ||
| 1D: | ||
| EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, etc. | ||
| Resolution | ≥5mil | |
| Typical Depth of Field | EAN-13 20mm-105mm (13mil) | |
| PDF417 30mm-40mm (6.7mil) | ||
| Data Matrix 30mm-45mm (10mil) | ||
| QR Code 0mm-85mm (15mil) | ||
| Scan Mode | Sense mode, Continuous mode | |
| Min. Symbol Contrast | 20% | |
| Scan Angle | Roll: 360°, Pitch: ±75°, Skew: ±75° | |
| Motion Tolerance | 2.7m/s | |
| Field of View | Horizontal 68°, Vertical 51°, Diagonal 84.8° | |
| Mechanical / Electrical |
Interface | USB |
| Operating Voltage | 5VDC±5% | |
| Rated Power Consumption | 698mW (typical) | |
| Current@5VDC | Operating 140mA (typical) | |
| Idle 100mA (typical) | ||
| Dimensions | 66.3(W)×76.3(D)×38(H)mm (max.) | |
| Weight | 120g | |
| Environmental | Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux (natural light) | |
| ESD | ±12 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | 1.5m | |
| Sealing | IP42 | |
| Certifications | VCCI, RoHS |
