• 卓越的辨識效能
• 人體工學設計，方便好握
• 良好的防護
• 快速連線功能，免安裝驅動程式，隨插即用
• 實體電源開關設計，待機時科關閉電源，達到完全真正斷電省電功能。
• 資料傳輸不遺漏! 離線狀態下仍可操作並自動儲存資料，恢復連線立即回傳資料。

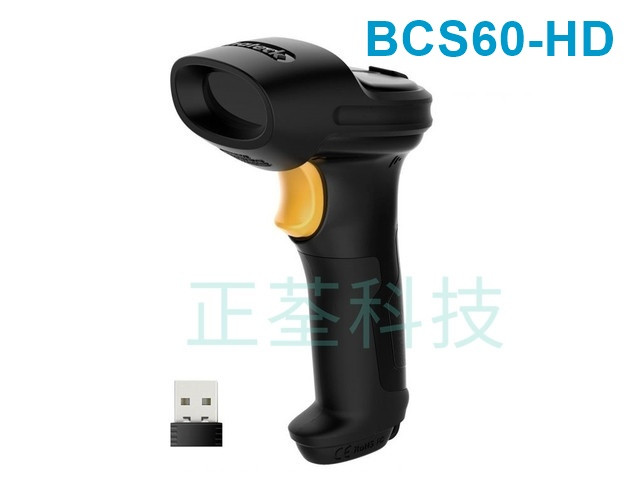

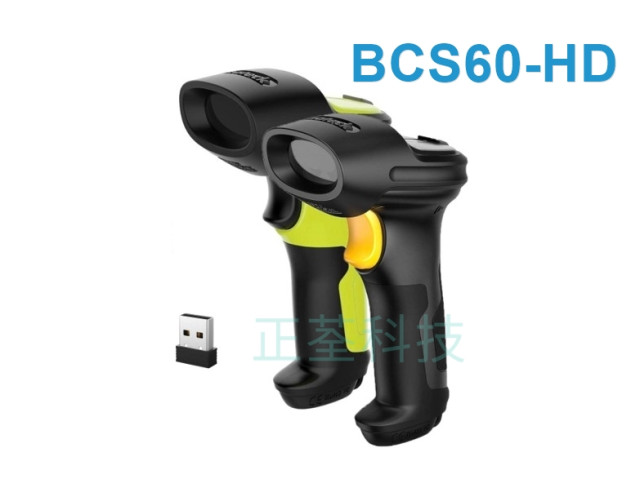

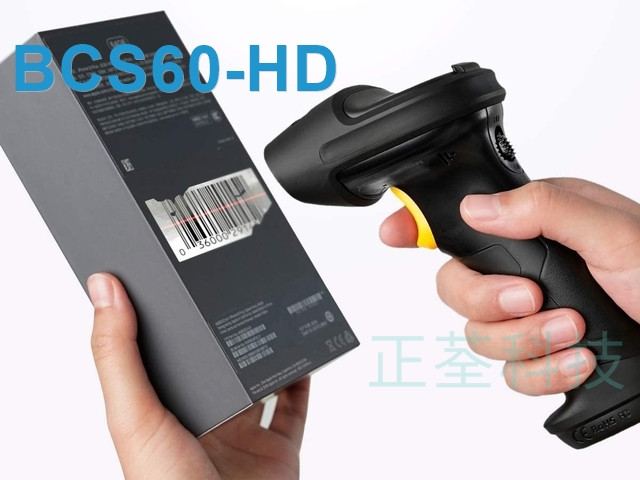

BCS60-HD無線雷射掃描器，能夠同時辨識高密度小條碼、
也能快速解碼資料量多的一維長條碼，甚至針對髒污破損的一維條碼都能快速解碼。
適用於電子業、珠寶光學、零售、醫療等各種行業應用。
產品特色:
• 卓越的辨識效能
• 人體工學設計，方便好握
• 良好的防護
• 快速連線功能，免安裝驅動程式，隨插即用
• 實體電源開關設計，待機時科關閉電源，達到完全真正斷電省電功能。
• 資料傳輸不遺漏! 離線狀態下仍可操作並自動儲存資料，恢復連線立即回傳資料。
| PHYSICAL CHARACTERISTICS | |
| Model Number | BCS60-HD |
| Material | PC+TPU |
| Size | Length 92mm*Width 69mm*Height 162mm |
| Weight | 200g |
| Color | Yellow |
| Voltage | DC 5V |
| Battery Capacity | 2600mAh |
| PERFORMANCE CHARACTERISTICS | |
| Light Source | Laser LED 655+-5nm |
| Sensor | Linear image sensor |
| EEPROM | 256K, can store thousands of barcodes |
| Applicable Barcodes | Codabar, Code11, Code128, Code39, Code93, EAN-8, EAN-13, ISBN, ISSN, MSI, |
| UPCA, UPCE, IATA 25, Industrial 25 / Standard 25, Interleaved 25, Matrix 25, | |
| China Postal Code, FedEX, USPS, Code32, VIN | |
| Resolution | 3 mil |
| Decode Rate | 220 times/sec |
| Decode Mode | Single-Line Aiming |
| Scanning mode | Automatic mode / Manual mode |
| Norminal Working Distance | 4-40cm |
| Scan Width | 400mm @ 400mm |
| Print Contrast | 20% |
| Decode Angles | Roll 30。, Pitch 75。, Yaw 80。 |
| Cylinder Horizontal Scan | Diameter 20mm |
| Indication | Buzzer, LED |
| Interface | USB |
| Radio Frequency | 2.4~2.4835 GHz |
| Transmission Rate | 1Mbps\ |
| Wireless Range | >=35M |
| Continuous Scanning times | 180000 times |
| EMC | CE, FEE, RoHS, FDA, IEC62133, UN38.3 |
| USER ENVIRONMENT | |
| Operating Temp. | 0。~50。C |
| Storage Temp. | 0。~50。C |
| Operating Humidity | 20~85% (non-condensing) |
| Storage Humidity | 20~85% (non-condensing) |
