• 卓越的DPM解碼能力
• 創新的多光源照明系統(紅光+白光+藍光)
• 智慧輔助照明光源自動切換與豐富的功能設定
• 高防護工業結構設計

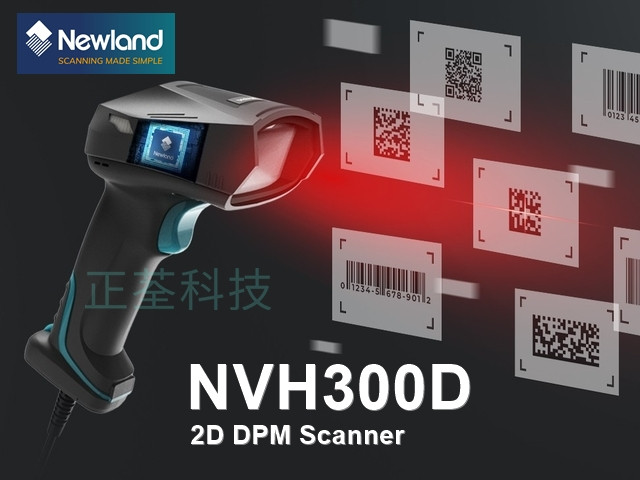

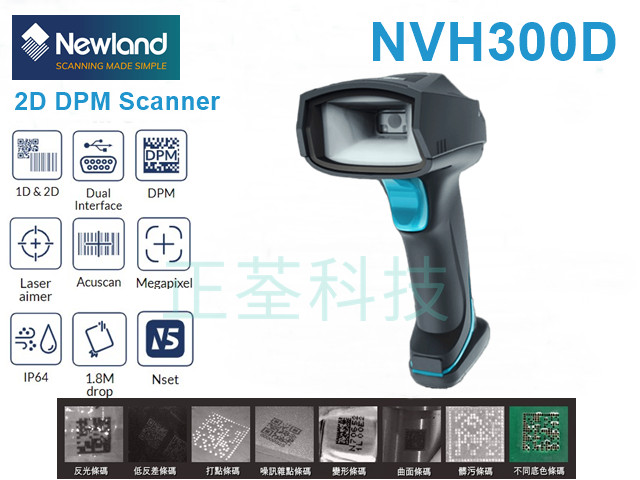

Newland NVH300D手持式 一維/二維條碼掃描器採用新一代工業解碼演算法，對雷射蝕刻、金屬打點刻印等直接零件標識(DPM)條碼具有強大的解碼能力。
Newland NVH300D具有創新的多光源照明系統、智慧光源切換與豐富的功能設定、高防護結構設計等特色，
適用於工廠產線，如電子業生產追溯管理、金屬製造追溯管理、汽車零配件品質管理與追溯等。
產品特色:
• 卓越的DPM解碼能力:
採用新一代工業解碼演算法，對雷射蝕刻、金屬打點刻印等直接零件標識(DPM)條碼具有強大的解碼能力。
• 創新的多光源照明系統:
中央雷射十字輔助瞄準線可方便精準掃描，並搭配白色、紅色與藍色光源照明，豐富的照明系統能夠克服不同的材質(如反光)、型態(如弧形彎曲表面)、多樣背景與不同條碼顏色的各類複雜的掃描需求。
• 智慧光源切換與豐富的功能設定:
具有智慧光源自動切換功能，能夠根據最佳解碼效果自動記憶光源照明類型。通過設定軟體NSet，可以對條碼掃描器的功能進行多樣化的設定。
• 高防護工業結構設計:
具備IP64防護等級，並可承受1.8M高度地面落摔，具備優秀的可靠性和穩定性。
| Performance | Image Sensor | 1280×960 CMOS | |
| Illumination | Direct: White LED; | ||
| Aiming | Diffuse: Ring of red LEDs, Ring of blue LEDs; | ||
| 650nm laser diode | |||
| Symbologies | 2D | PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. | |
| 1D | EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, | ||
| UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, | |||
| Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, | |||
| GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128. | |||
| Resolution | ≥3mil | ||
| Typical Depth of Field | Code 39 | 38mm-68mm (3.3mil) | |
| Code 39 | 18mm-90mm (5mil) | ||
| Data Matrix | 18mm-58mm (5mil) | ||
| Data Matrix | 0mm-90mm (10mil) | ||
| QR Code | 20mm-50mm (5mil) | ||
| QR Code | 0mm-90mm (10mil) | ||
| Motion Tolerance | Max. 2m/s (6.56ft/s) | ||
| Scan Angle | Pitch: ±60°, Roll: 360°, Skew: ±55° | ||
| Field of View | Horizontal 41°, Vertical 31° | ||
| Min. Symbol Contrast | 20% | ||
| Mechanical / Electrical |
Interfaces | RS-232, USB | |
| Dimensions | 76(W)×107(D)×185(H)mm | ||
| Weight | 245g | ||
| Notification | Beep, LED indicator, Vibration | ||
| Rated Power Consumption | 2250mW (typical) | ||
| Operating Voltage | 5VDC±5% | ||
| Current@5VDC | Operating | 450mA (typical), 475mA (max.) | |
| Environmental | Operating Temperature | -20℃ to 50℃ (-4°F to 122°F) | |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) | ||
| Humidity | 5%~95% (non-condensing) | ||
| ESD | ±8 KV (direct discharge); ±16 KV (air discharge) | ||
| Drop | 1.8m (5.9ft) | ||
| Sealing | IP64 | ||
| Certifications | FCC Part15 Class B, CE EMC Class B |
