• 百萬畫素高解析度
• 一鍵切換讀取模式
• 良好的運動容差能力
• IP52防護等級
• 卓越的條碼識讀性能
• 1.2米抗落摔
• 配備紅外線影像自動感應

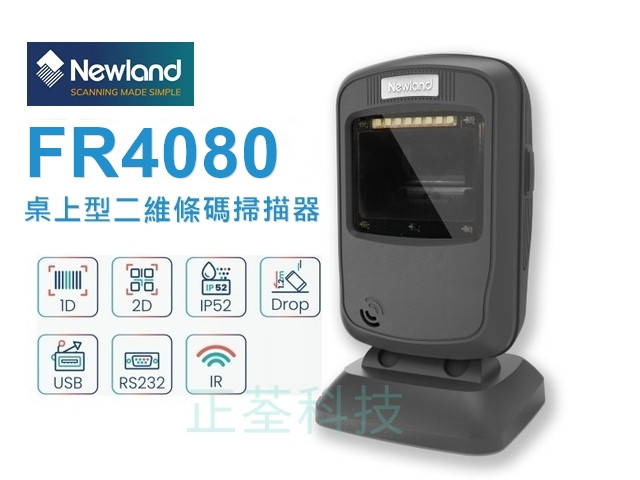

Newland FR4080 桌上型一維/二維條碼掃描器，能快速地識讀螢幕及紙張的一維或二維條碼。FR4080U支援RS-232/USB等PC介面，結實耐用，具有良好性價比。
非常適合在商超/便利店收銀台、電子驗票視窗、O2O等場景應用。
產品特色:
• 百萬畫素高解析度:
採用高達1280x800 CMOS二維影像高解析光學模組。
• 一鍵切換讀取模式:
可通過頂部按鍵一鍵切換紙張條碼讀取模式/螢幕條碼讀取模式。
• 良好的運動容差能力:
2.5米/秒的運動容差能力結合46度的超大識讀角度，給您最好的識讀感受。
• IP52防護等級:
可防止外物侵入。
• 卓越的條碼識讀性能:
採用Newland自主研發的第五代 核心解碼技術，可以快速識讀各類一維/二維條碼和各類貼膜的大資料量螢幕二維條碼。
• 1.2米抗落摔:
可承受6個面不低於1.2米的水泥地面跌落（六面各一次）。
• 配備紅外線影像自動感應:
當被掃描物體靠近掃描視窗時，設備可瞬間自動啟動並進行快速辨識掃描。
| Performance | Image Sensor | 1280×800 CMOS |
| Illumination | White LED | |
| Symbologies | 2D PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. | |
| 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, | ||
| Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. | ||
| Resolution* | ≥3mil | |
| Typical Depth of Field* | EAN-13 5-195mm (13mil) | |
| QR Code 5-165mm (15mil) | ||
| Motion Tolerance* | 2.5m/s | |
| Scan Angle** | Pitch: ±50°, Roll: 360°, Skew: ±45° | |
| Field of View | Horizontal 51°, Vertical 32° | |
| Min. Symbol Contrast | 25% | |
| Mechanical / | Interfaces | RS-232, USB |
| Electrical | Dimensions | 83(W)×81(D)×148(H)mm |
| Weight | 293g | |
| Notification | Beep, LED indicator | |
| Rated Power Consumption | 1041mW (typical) | |
| Operating Voltage | 5VDC±5% | |
| Current@5VDC | Operating 219mA (typical) | |
| Environmental | Operating Temperature | -20°C to 60°C(-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5%~95% (non-condensing) | |
| ESD | ±14 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | 1.2m drops to concrete (for six sides, one drop per side) | |
| Sealing | IP52 | |
| Certifications | FCC Part15 Class B, CE EMC Class B | |
| Accessories | Cable | USB Used to connect the scanner to a host device. |
| RS-232 Used to connect the scanner to a host device. | ||
| Power Adapter | DC5V power adapter to provide power for the scanner with RS-232 cable. | |
